Description

Builder: Sherman Shipbuilding. Construction: Steel Hull, Aluminum Wheelhouse. Main Engines: 2x Cummins. Fuel Capacity: 10,500 gallons. Horsepower: 600 each (1200 total).

Specifications

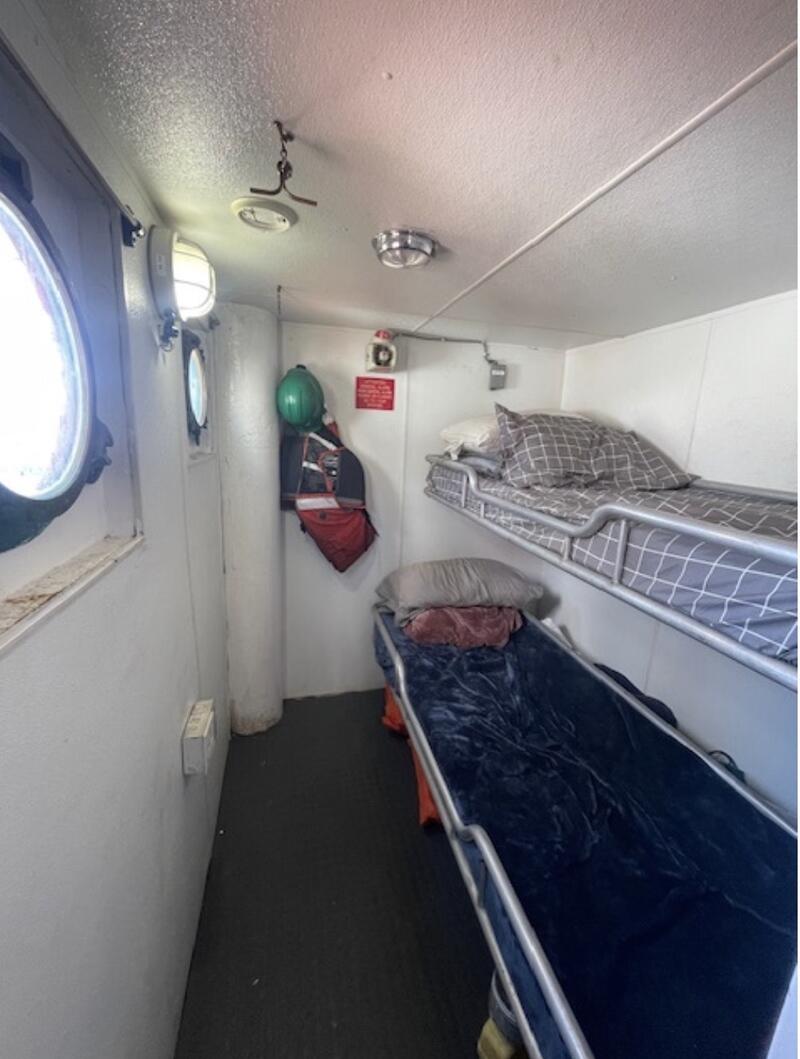

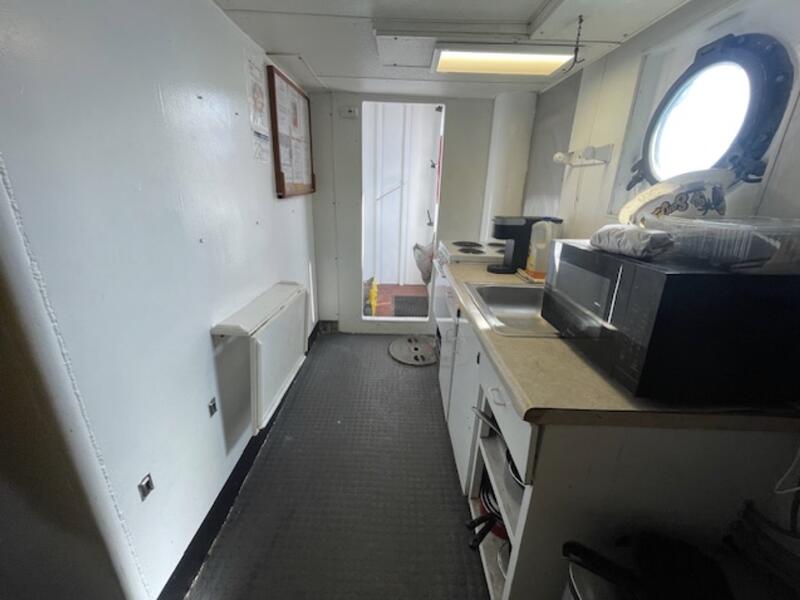

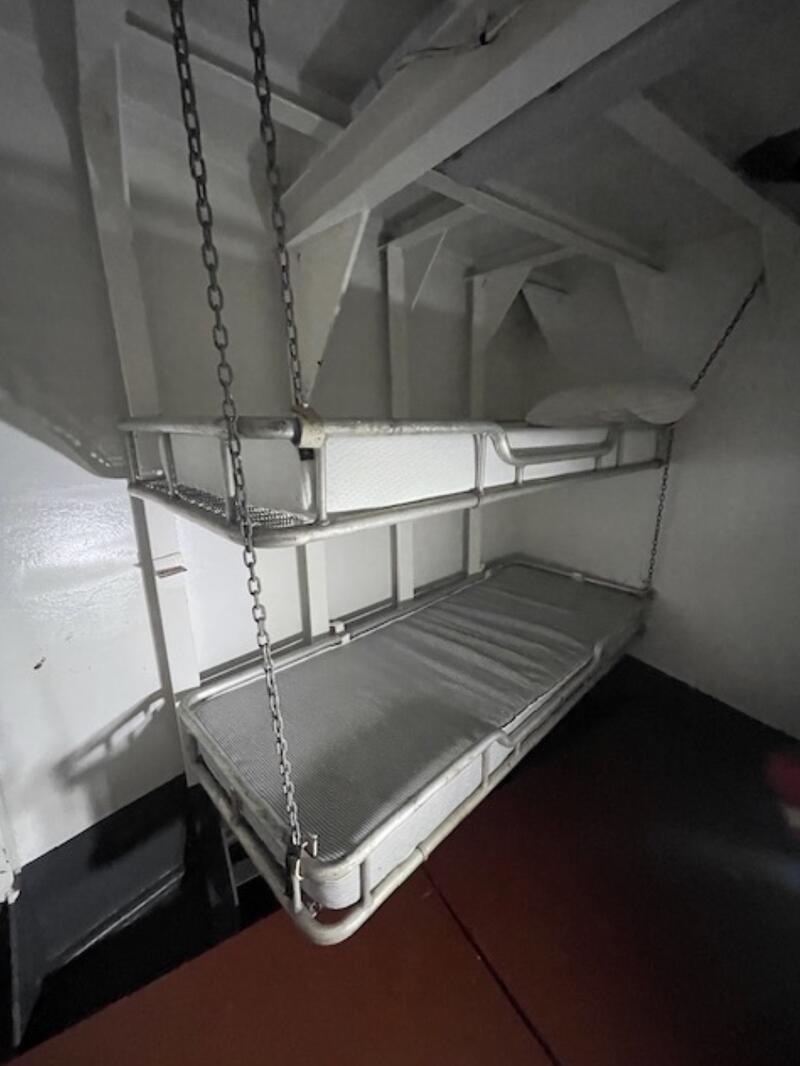

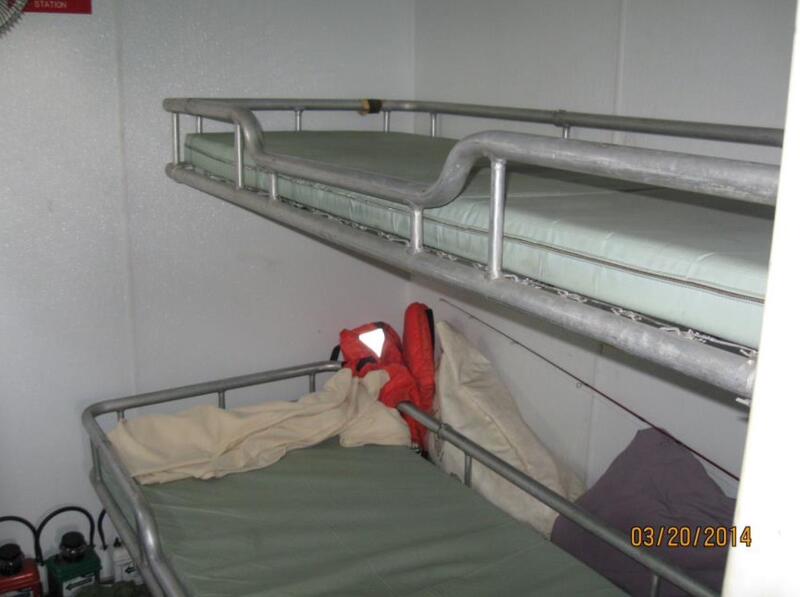

Accommodation

Construction

Service: Towing
Year Built: 1979
Rebuilt: 2015
Builder: Sherman Shipbuilding
Construction: Steel Hull, Aluminum Wheelhouse
GRT: 81
NRT: 55
LOA: 59’ 8”
Beam: 20’
Draft: 7’ 3’’

Tanks
Fuel Capacity: 10,500 gallons
Lube Oil: 50 gallons
Fresh Water: 1,300 gallons

Equipment

Winch & Tow Wire:
Hydraulic Winch: Nor-Crane
Total Capacity: 1500 feet
Size: 1 ¼
Tow Bridle: 7/8 x 31 wire rope sling * 6 by 19 class.
4 ft long pressed eye and thimble eye on the other

Navigation Equipment

Engine(s)

Propulsion and Drive Train
2 Main Engines: Installed April 2012
Make: CUMMINS
Model: QSK19 Tier II
Horsepower: 600 each (1200 total)
RPM: 1900 rated
Starting: Electric

Generator
Make ISUZU
Model 4LE2
Output 21 KW

Propellers and Shafts:
2 Propellers Installed April 2012
3-Blade, Fixed Pitch
Direction and Rotation: Outboard (from Aft)
Reduction Ratio: 4.50: 1 TWIN DISC
Shaft Diameter: 4”
Shaft Material: Stainless Steel

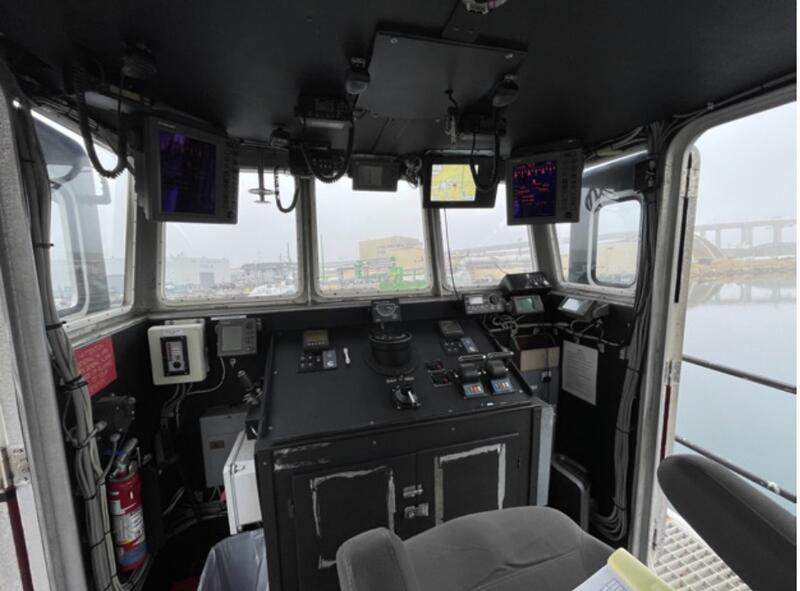

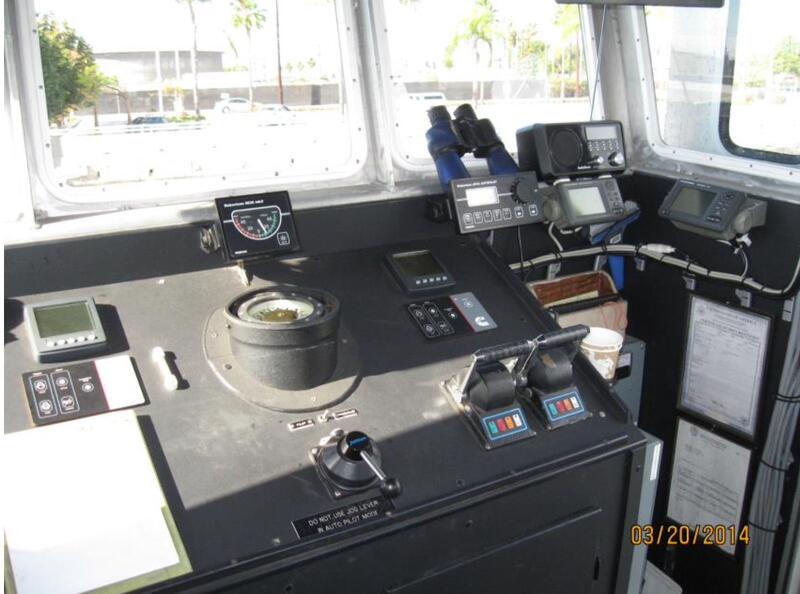

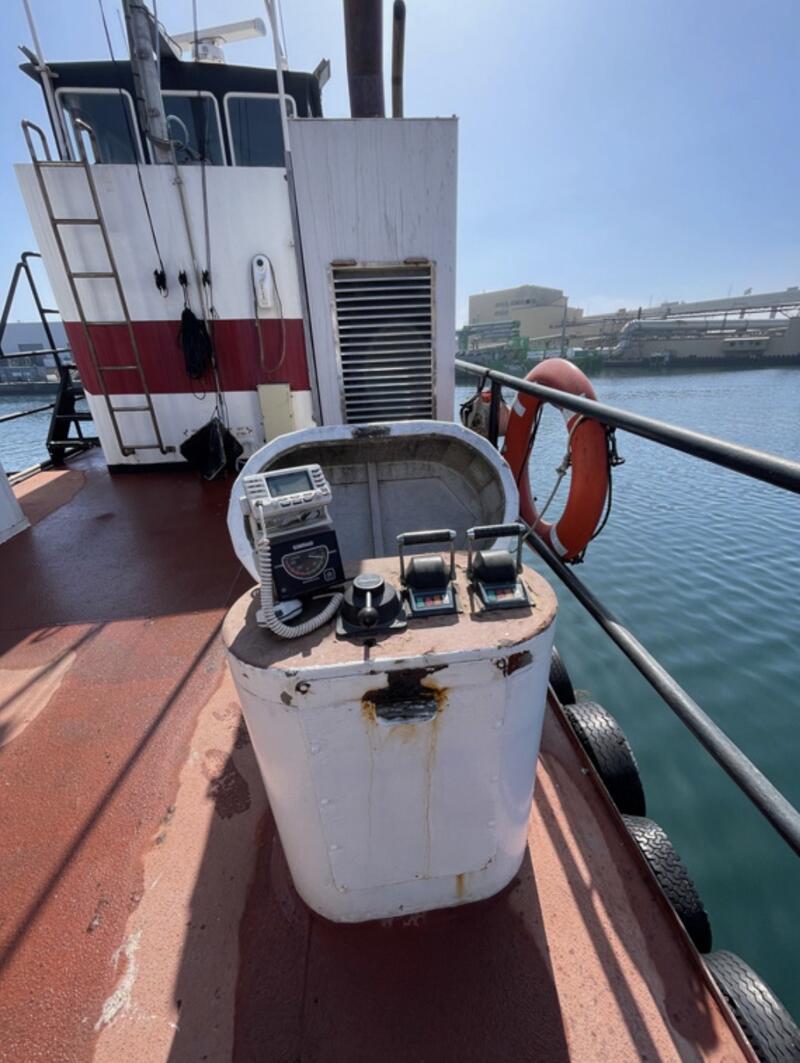

Engine Controls
Throttles: Kobelt electric 24V
Steering: Jastran electro-hydraulic

Fuel & Hydraulic Tanks and Capacity:
Number of Diesel fuel Tanks: 2
Total Capacity Diesel fuel: 10,500 gallons
Port Tank: 5,250 gallons
Starboard Tank: 5,250 gallons
Total Capacity Hydraulic fluid: 600 gallons
Tank 1 Hydraulic fluid steering: 300 gallons
Tank 2 Hydraulic fluid winch: 300 gallons

Electrics

Systems
Potable Water
Ballast Tanks
Bilge/Fire Pump: 50 Gallons /Min
Hydraulic: The Port Main runs tow winch, Anchor Windless, Capstan- 300
gallon tank, Starboard is the back up
AC Electrical: Isuzu 21KW
DC Electrical: 24 and 12 volt service provided by batteries
Shore Power: 3 phase, 110V shore connection
