Description

On Charter - From today 08/17/2024 (AVAILABILITY WITHIN 30-45 DAYS)

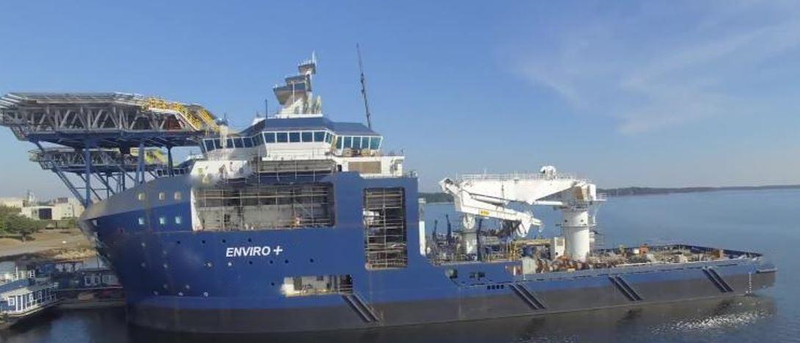

Class notation: ABS +A1, HELIDK, FIFI 1, OSR-C2, Offshore Support Vessel, Circle E , †AMS, †ACCU, †DPS 2, NBLES, ENVIRO+, GP

Specifications

Accommodation

8. Accommodation : 28 air conditioned/heated staterooms for 72 person(s) berthing total and 3 sick bays.

The rooms are configured as follows:

4 air conditioned staterooms for 1 person(s) berthing each.person(s) berthing each. 14 air conditioned staterooms for 2 person(s) berthing each.
10 air conditioned staterooms for 4 person(s) berthing each.person(s) berthing each.

1 x Lounge;

Construction

11. Mud / brine : 3097 m3
12. Dry bulk : 406m3
13. Methanol: 268 m3
14. W.B./D.W. : 2508m3

15. Deck cargo capacity : 3,709 t
16. Working deck space : 930.4 m2
17. Cleardeck space : 930 m2
18. Deck design load : 5.3 t / m2

Deck Cranes : One (1) unit of ( NOV AHC ) electro-hydraulic active heave compensation knuckle boom-crane,with SWL of 165t @ radius 19m / 30 t @ 50 m radius (3600 m wire length. One (1) unit of aux crane, SWL 3t at 14m. Independent hydraulic power pack to be provided for the cranes.

Helicopter deck : shall be installed at bow, suitable for operations with Sikorsky/S61N/ S-92 (12 T) , Equivalent type of helicopters. The forward supporting structure will be with foundations integrated.

Equipment

1. SPECIAL FEATURES

2. Incinerator Water Maker
3. Windlass: Coastal Machinery 2W15031-136-00 40 hp Electric Motor
4. Liferafts: 4 X 25 Man USCG and SOLAS Approved Anchor / Chain:
5. Computerized Tank Level Indicator System
6. Computerized Vessel Stability Program Computerized Cargo Discharge System
7. Liquid Mud Pipe Stripping System Fuel Management Program
8. Ergonomically Designed Pilothouse
9. FIRE MONITOR CAPACITY 2 x 1,200 m3/ HR
10. Quick Release Tow Hooks
11. Fast Rescue Craft: 1 Shart Harding with 40 hp Motor
12. 2 X 7000 lb. Danforth / 2" X 900'
13. Butterworth Tank Cleaning System
14. Real Time Video on Main Deck
15. FIRM PRICE USD $ TBD
