Description

LOA 95.3 m
Beam 21 m
Draft 7.5 m

Built in year 2010
Design is : VS 495 DEM CD
Class : DNV
Flag : Norway (NIS)
Gross Tonnage of 8,414 and Nett Tonnage of 2,525

Dynamic Positioning of class : DP 2
Free Deck area about 1,030m² with a deck strength of 15 metric tonnes per square meter

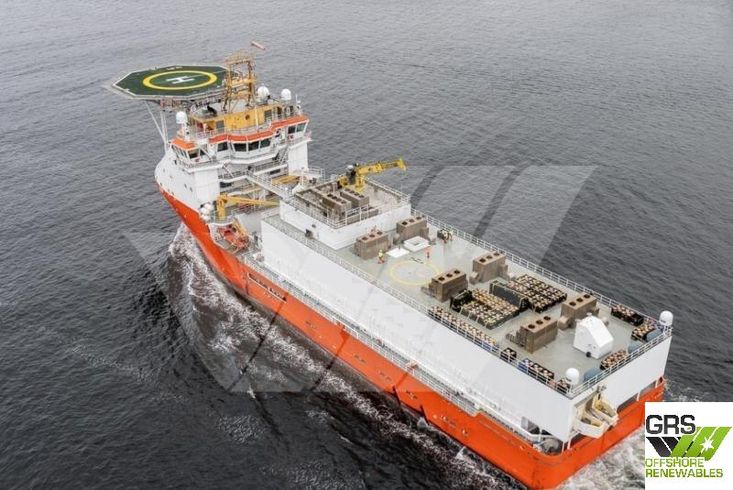

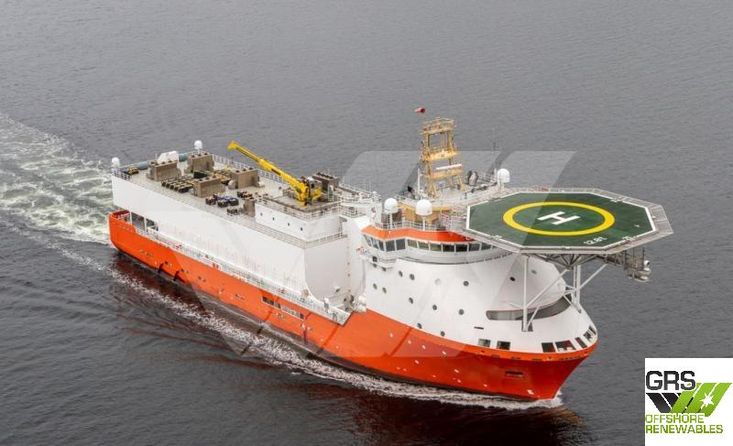

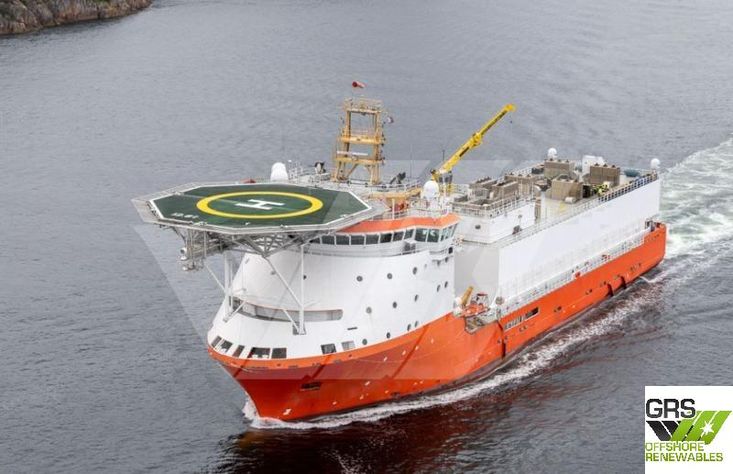

Heli Deck installed
2 KNB installed with a max lifting capacity of 3 tons
Deadweight : 5,260 metric tonnes
Capable of supplies of 1,210m³ Fuel Oils, 226m³ Methanol, 880m³ FW, 881m³ Liquid Mud and 503m³ Brine

Total 68 berths
15 cabins with 1 berth
26 cabins with 2 berths

Speed : 12 knots
Engines : 2 x MAN / MAN Diesel A/S 6L32/40, 5,760 kw, 750 rpm, Propellers 1 Controllable Pitch (Center)
Auxiliaries Engines : 2 x 3,200 kw, Bowthruster + Sternthruster (1 Bow 1,200kw + 2 Bow Tunnel thruster 883kw + 2 Stern 1,200kw + 1 Stern Tunnel thruster 570kw)

Specifications

Engine(s)

2 x 5,760 kw, 750 rpm, MAN / MAN Diesel A/S 6L32/40,
Propellers: 1 Controllable Pitch (Center)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
